GPS trackers from Teltonika are valued for high quality of the hardware, stable firmware, the ability to meet common use cases and apply custom specific configurations. Teltonika is an international GPS hardware and software manufacturer with more than 19 years of experience in creating devices for the Internet of Things. This Lithuanian-Finnish company offers a wide product range: autonomous GPS trackers, fleet management devices and video monitoring units. The EMS company was founded in 1998 and has the headquarters in Lithuania. Apart from the stable hardware and firmware, the company is valued for its custom specific configurations. Official website: http://www.teltonika.lt/

← All vendors
Teltonika FM1000

Teltonika FM1000

Supported

Teltonika FM1000 is a vehicle telematics unit that easily plugs into a vehicle's OBDII port of almost any car. It's the first OBDII tracker of Teltonika.

Server connection details

Server address
tracker.itrack.live
Server IP
52.51.181.145
Port
47776
Teltonika FM1000ST

Teltonika FM1000ST

Supported

Teltonika FM1000ST is a new name for the Teltonika FM1000, a vehicle telematics unit that easily plugs into a vehicle's OBDII port of almost any car.

Server connection details

Server address
tracker.itrack.live
Server IP
52.51.181.145
Port
47776
Teltonika FM1010

Teltonika FM1010

Supported

Teltonika FM1010 is a vehicle telematics unit that easily plugs into a vehicle's OBDII port of almost any car. It's the first OBDII tracker of Teltonika.

Server connection details

Server address
tracker.itrack.live
Server IP
52.51.181.145
Port
47776

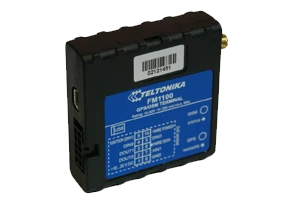

Teltonika FM1100

Teltonika FM1100

Supported

Teltonika FM1100 is the smallest device in the whole FM-devices family. This GPSGLONASS tracker that can be applied to navigation, tracking and remote control of the cars and vans.

Server connection details

Server address
tracker.itrack.live
Server IP
52.51.181.145
Port
47776
Teltonika FM1110

Teltonika FM1110

Supported

Teltonika FM1110 is a small light-weight vehicle tracking device. It is simply configured, and is perfectly suitable for Fleet and mobile workforce management.

Server connection details

Server address
tracker.itrack.live
Server IP
52.51.181.145
Port
47776

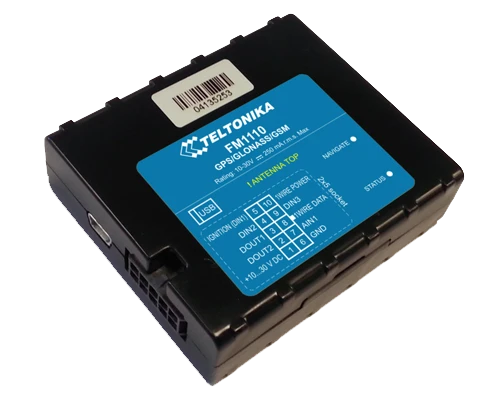

Teltonika FM1110 (FW 12.XX)

Teltonika FM1110 (FW 12.XX)

Supported

Teltonika FM1110 is a small light-weight vehicle tracking device. It is simply configured, and is perfectly suitable for Fleet and mobile workforce management, Usage Based Insurance, Car Rental, and Teenage driver tracking.

Server connection details

Server address
tracker.itrack.live
Server IP
52.51.181.145
Port
47776

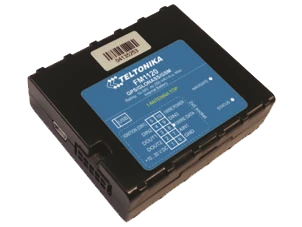

Teltonika FM1120

Teltonika FM1120

Supported

Teltonika FM1120 is marketed by the manufacturer as light real-time tracking terminal. It works with GPS and GLONASS systems and it is able to connect to GSM networks.

Server connection details

Server address
tracker.itrack.live
Server IP
52.51.181.145
Port
47776

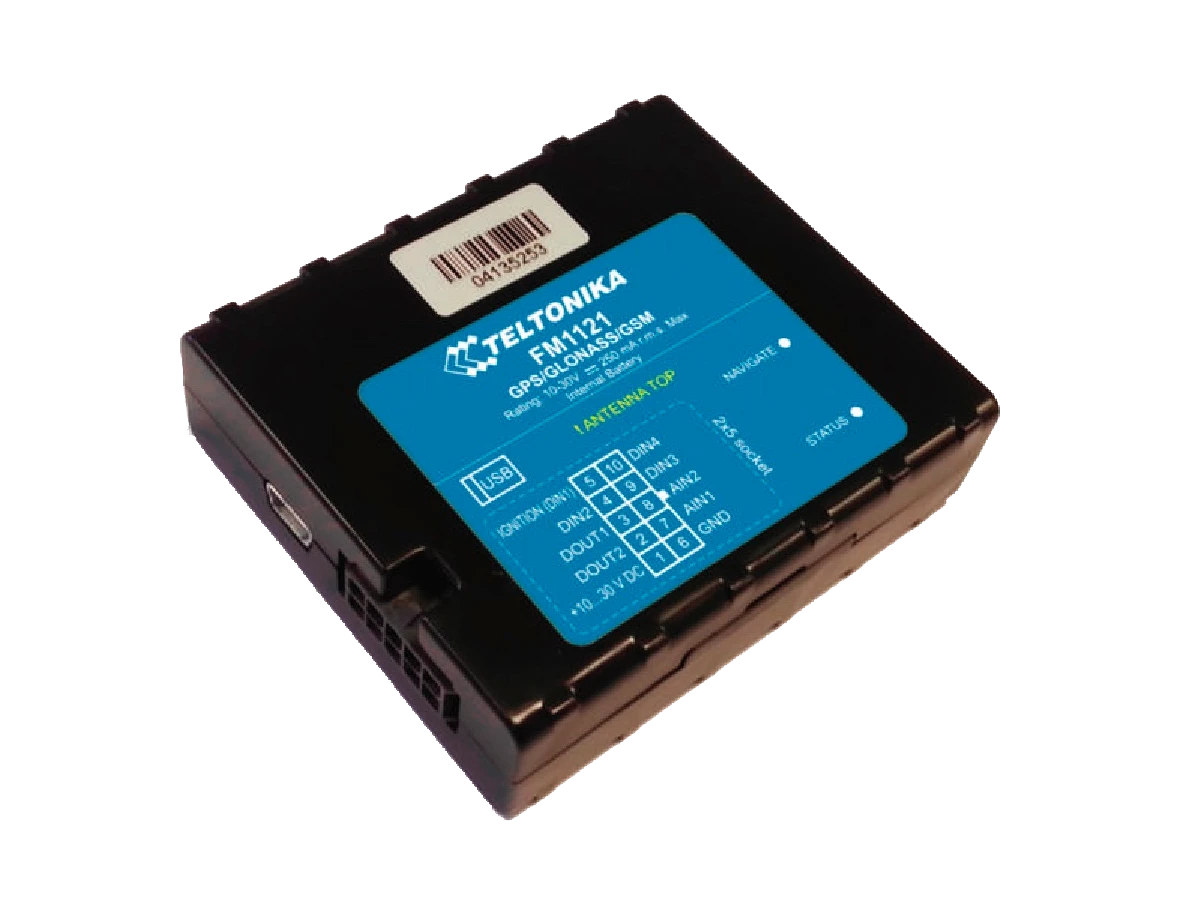

Teltonika FM1121

Teltonika FM1121

Supported

Teltonika FM1121 is marketed by the manufacturer as light real-time tracking terminal. It works with GPS and GLONASS systems and it is able to connect to GSM networks.

Server connection details

Server address
tracker.itrack.live
Server IP
52.51.181.145
Port
47776

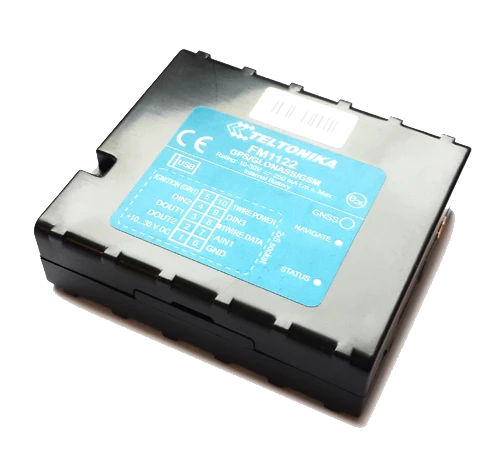

Teltonika FM1122

Teltonika FM1122

Supported

FM1122 is light tracking device. It works with GPS and GLONASS systems and it is able to connect to GSM networks.

Server connection details

Server address
tracker.itrack.live
Server IP
52.51.181.145
Port
47776

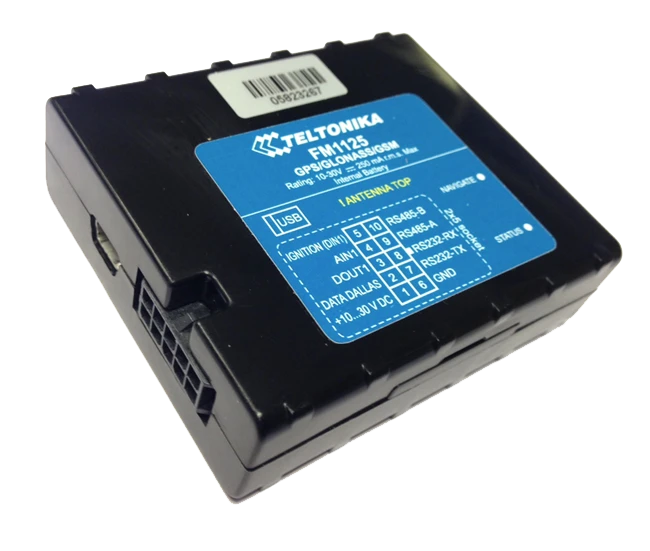

Teltonika FM1125

Teltonika FM1125

Supported

FM1125 is light real-time tracking terminal with GPS/GLONASS, GSM connectivity and RS232/RS485 data interface support.

Server connection details

Server address
tracker.itrack.live
Server IP
52.51.181.145
Port
47776

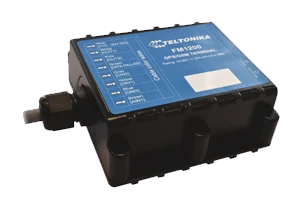

Teltonika FM1200

Teltonika FM1200

Supported

Teltonika FM1200 is considered to be a vehicle GPS tracker that can be used in the business or personal spheres like monitoring of the transport, logistics and safety.

Server connection details

Server address
tracker.itrack.live
Server IP
52.51.181.145
Port
47776

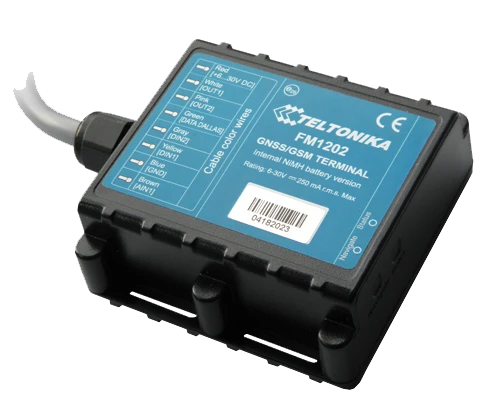

Teltonika FM1202

Teltonika FM1202

Supported

Teltonika FM1202 is considered to be a vehicle GPS tracker that can be used in the business or personal spheres like monitoring of the transport logistics and safety.

Server connection details

Server address
tracker.itrack.live
Server IP
52.51.181.145
Port
47776

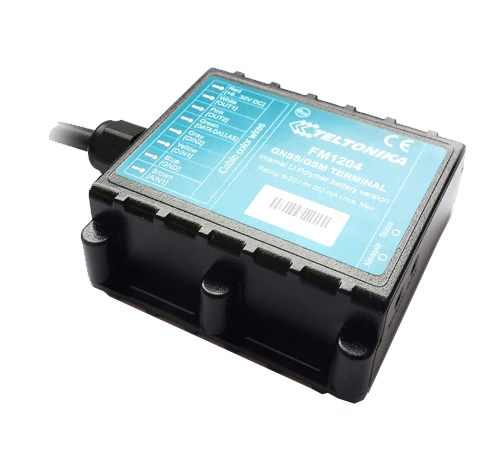

Teltonika FM1204

Teltonika FM1204

Supported

Teltonika FM1204 is considered to be a vehicle GPS tracker that can be used in the business of personal spheres like monitoring of the transport logistic and safety.

Server connection details

Server address
tracker.itrack.live
Server IP
52.51.181.145
Port
47776

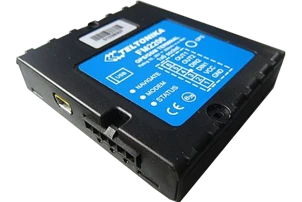

Teltonika FM2200

Teltonika FM2200

Supported

Teltonika FM2200 is a vehicle GPS tracker that can be used for fleet management as well as for the personal cars and vans.

Server connection details

Server address
tracker.itrack.live
Server IP
52.51.181.145
Port
47776

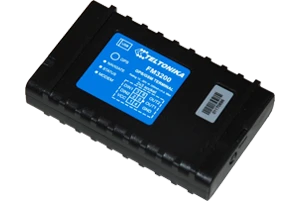

Teltonika FM3200

Teltonika FM3200

Supported

Teltonika FM3200 is a portable vehicle GPS/GLONASS tracker with the GSM connectivity. It can be a solution of various problems for business and common consumers.

Server connection details

Server address
tracker.itrack.live
Server IP
52.51.181.145
Port
47776

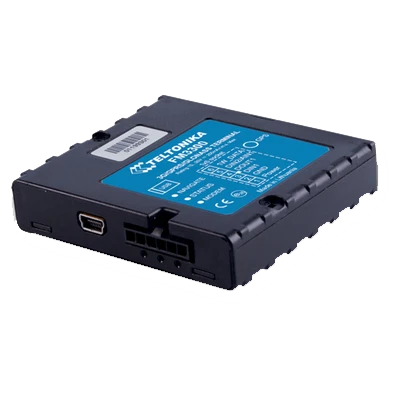

Teltonika FM3300

Teltonika FM3300

Supported

Teltonika FM3300 is a compact GPS tracking device for vehicles with support of 3G/GSM networks. This is a budget tracker which works with GPS and GLONASS signals.

Server connection details

Server address
tracker.itrack.live
Server IP
52.51.181.145
Port
47776

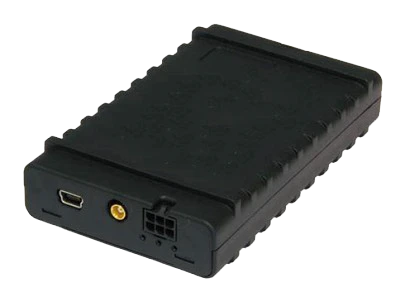

Teltonika FM3400

Teltonika FM3400

Supported

Teltonika FM3400 is a compact GPS tracking device for vehicles with support of GSM networks. This is a budget tracker which works with GPS and GLONASS signals.

Server connection details

Server address
tracker.itrack.live
Server IP
52.51.181.145
Port
47776

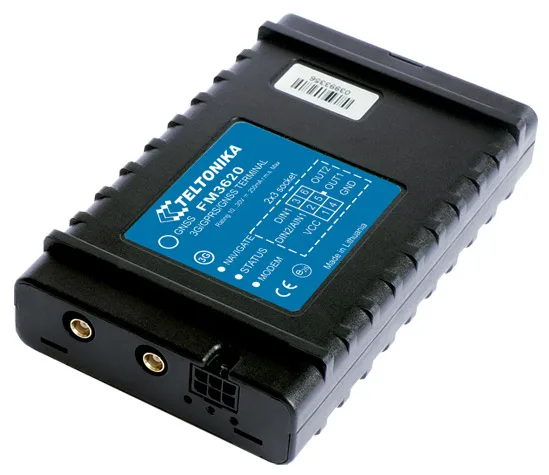

Teltonika FM3620 C1

Teltonika FM3620 C1

Supported

FM3620 is a terminal with GPS/GLONASS and GSM/3G connectivity with backup battery, which is able to collect device coordinates and other useful data and transfer them via the GSM/3G network.

Server connection details

Server address
tracker.itrack.live
Server IP
52.51.181.145
Port
47776
Teltonika FM3620 C2

Teltonika FM3620 C2

Supported

FM3620 is a terminal with GPS/GLONASS and GSM/3G connectivity with backup battery, which is able to collect device coordinates and other useful data and transfer them via the GSM/3G network.

Server connection details

Server address
tracker.itrack.live
Server IP
52.51.181.145
Port
47776
Teltonika FM4100

Teltonika FM4100

Supported

Teltonika FM4100 is a heavy vehicle GPS/GLONASS terminal that is suitable for working on vans and trucks. It is able to send the coordinates and different status messages of the vehicle.

Server connection details

Server address
tracker.itrack.live
Server IP
52.51.181.145
Port
47776

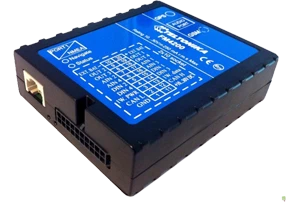

Teltonika FM4200

Teltonika FM4200

Supported

Teltonika FM4200 is a heavy vehicle GPS/GLONASS terminal that is suitable for working on vans and trucks. It is able to send the coordinates and different status messages of the vehicle.

Server connection details

Server address
tracker.itrack.live
Server IP
52.51.181.145
Port
47776
Teltonika FM5300

Teltonika FM5300

Supported

Teltonika FM5300 is advanced terminal with GLONASS/GPS positioning and GSM connectivity, which is able to get device coordinates and other data and transfer them via GSM network.

Server connection details

Server address
tracker.itrack.live
Server IP
52.51.181.145
Port
47776

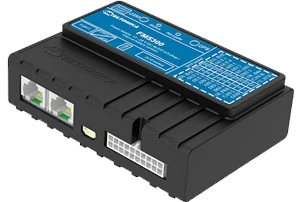

Teltonika FM5500

Teltonika FM5500

Supported

Teltonika FM5500 is an advanced GNSS terminal that works with GPS and GLONASS and has a GSM connectivity. This device can be useful for fleet management and logistics companies.

Server connection details

Server address
tracker.itrack.live
Server IP
52.51.181.145
Port
47776

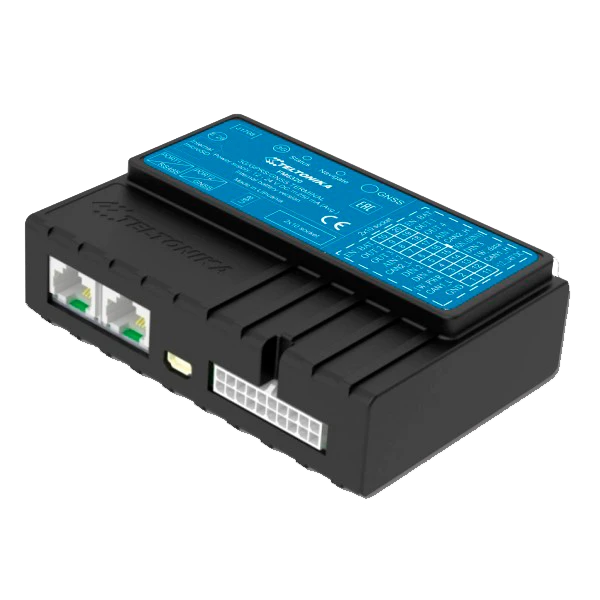

Teltonika FM6320

Teltonika FM6320

Supported

Teltonika FM6320 is real-time advanced tracking terminal with GNSS and 3G/GSM connectivity with backup battery, which is able to collect device coordinates and other useful data and transfer them via 3G/GSM network.

Server connection details

Server address
tracker.itrack.live
Server IP
52.51.181.145
Port
47776

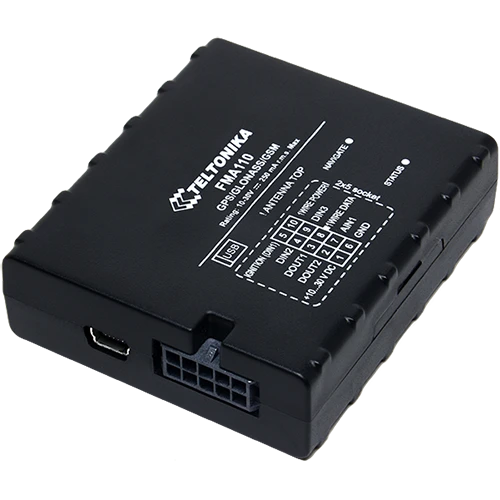

Teltonika FMA110

Teltonika FMA110

Supported

Teltonika FMA110 is a terminal with GPS and GSM connectivity, which is able to determine the object’s coordinates and transfer them via the GSM network.

Server connection details

Server address
tracker.itrack.live
Server IP
52.51.181.145
Port
47776

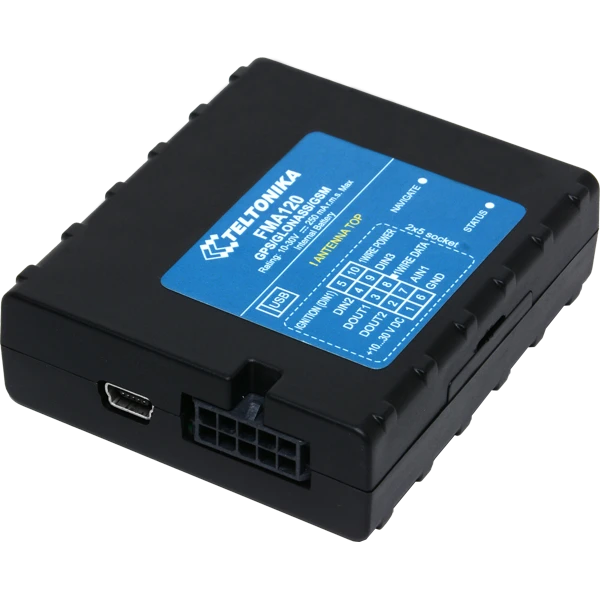

Teltonika FMA120

Teltonika FMA120

Supported

Teltonika FMA120 is marketed by the manufacturer as light real-time tracking terminal. It works with GPS and GLONASS systems and it is able to connect to GSM networks.

Server connection details

Server address
tracker.itrack.live
Server IP
52.51.181.145
Port
47776
Teltonika FMB001

Teltonika FMB001

Supported

Location and tracking GPS and GLONASS Continuous mode only LBS support

Server connection details

Server address
tracker.itrack.live
Server IP
52.51.181.145
Port
47776
Teltonika FMB010

Teltonika FMB010

Supported

Location and tracking GPS and GLONASS Continuous mode only LBS support

Server connection details

Server address
tracker.itrack.live
Server IP
52.51.181.145
Port
47776

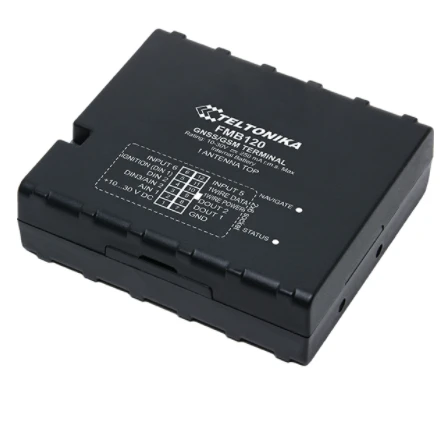

Teltonika FMB120

Teltonika FMB120

Supported

FMB120 small and professional tracker with internal high gain GSM and GNSS antennas, which is able to collect device coordinates and other useful data and transfer them via GSM network to server. This device is perfectly suitable for applications where location acquirement of remote objects is needed: fleet management, car rental companies, taxi companies, public transport, logistics companies, personal cars and so on. FMB120 can perform tasks on remote objects, such as monitoring engine status, controlling truck's door etc.

Server connection details

Server address
tracker.itrack.live
Server IP
52.51.181.145
Port
47776
Specifications

FEATURES

  • With new integrated GNSS module, your tracking experience will be better than ever before. Even higher sensitivity, faster than ever cold start and almost instant hot start ensures that your fleet will be tracked precisely
  • Dual SIM for extended GSM flexibility
  • Bluetooth transceiver fully compliant with Bluetooth specification V3.0 for external peripherals
  • Small and easy to mount case
  • Real Time tracking
  • Smart data acquisition based on time, distance, angle, speed delta, ignition and I/O events allow to have precise online tracker
  • Sending acquired data via GPRS (TCP/IP and UDP/IP protocols)
  • Smart algorithm of GPRS connections for GPRS traffic saving
  • Operating in roaming networks by preferred GSM providers list
  • Add all your unwanted GSM operators to black list
  • Events from I/O elements detection and sending via GPRS or SMS
  • 50 geofence zones (rectangular or circle)
  • Auto Geofencing created for car towing detection and car theft prevention
  • Towing detection using accelerometer
  • Crash detection with buffer
  • Deep Sleep mode (less than 6 mA power consumption)
  • Online Deep Sleep mode for constant connection with server
  • Firmware and configuration update via GPRS (FOTA)
  • 3 operational modes (Home, Roaming, Unknown) based on operator
  • Time synchronization by NTP (Network Time Protocol) if GNSS signal is absent
  • Time synchronization by NITZ (Network Identity and Time Zone) if GNSS signal is absent
  • Integrated scenarios:
    • Over speeding to secure driver and prevent penalties
    • Immobilizer function
    • Authorized driving (1-Wire iButton ID keys up to 50 iButton keys) use to prevent stealing or indicate drivers
    • GSM jamming detection
    • Excessive Idling detection
    • DOUT control via call
    • Trip start and end detection

  • Bluetooth scenarios:
    • Voice calls over Bluetooth
    • OBDII Bluetooth dongle
    • Data link mode over Bluetooth

  • Teltonika Vehicle Can Adapters support to acquire CAN data from any kind of transport such as light vehicles, trucks, buses, agriculture transport, and special transport FMB120

SPECIFICATIONS

  • GSM
    • Quad-band 900/1800 MHz; 850/1900 MHz
    • GPRS Multi-Slot Class 12 (up to 240 kbps)
    • GPRS Mobile Station Class B
    • SMS (text/data)
    • Dual SIM

  • GNSS
    • Tracking: 33/ 99 acquisition channels
    • -165 dBM sensitivity
    • Hot start <1s
    • Warm Start < 25s
    • Cold start < 35s
    • NMEA-183 protocol
    • GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS
    • Accuracy < 3m

  • INTERFACE
    • 2 Digital Inputs (1 reserved for Ignition Status Monitoring)
    • 1 Analog Input (10V or 30V range)
    • 1 configurable input DIN3 or AIN2
    • 2 Digital Open-collector Outputs (connecting external relays, LED, buzzers etc.)
    • 1-Wire (iButton, RFID, temperature sensors)
    • MicroSD
    • Built in accelerometer
    • Power supply (+10...+30) V DC
    • Internal high gain GSM antenna
    • Internal high gain GNSS antenna
    • Dimensions: L(65mm) x W(56,6mm) x H(18,9mm)
    • 2 Status LEDs
    • Micro USB Port/
    • Integrated LiPo back-up battery

  • Bluetooth
    • Bluetooth specification V3.0 (2400 MHz - 2483.5 MHz)
    • Bluetooth transceiver fully compliant with Bluetooth specification V3.0 for external peripherals:
      • Voice calls over Bluetooth
      • Configuration via Bluetooth
      • OBDII Bluetooth dongle

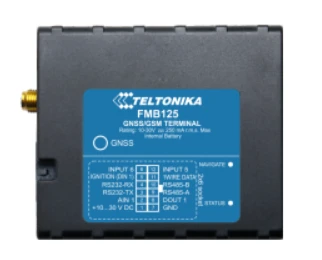

Teltonika FMB125

Teltonika FMB125

Supported

FMB125 small and professional tracker with internal high gain GSM and external GNSS antennas, which is able to collect device coordinates and other useful data and transfer them via GSM network to server.

Server connection details

Server address
tracker.itrack.live
Server IP
52.51.181.145
Port
47776

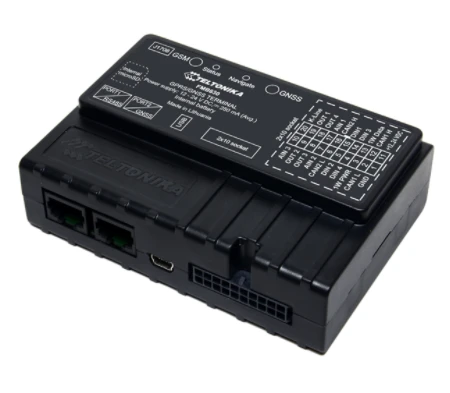

Teltonika FMB630

Teltonika FMB630

Supported

FMB630 is a terminal with GPS and GSM connectivity, which is able to determine the object’s coordinates and transfer them via the GSM network.

Server connection details

Server address
tracker.itrack.live
Server IP
52.51.181.145
Port
47776

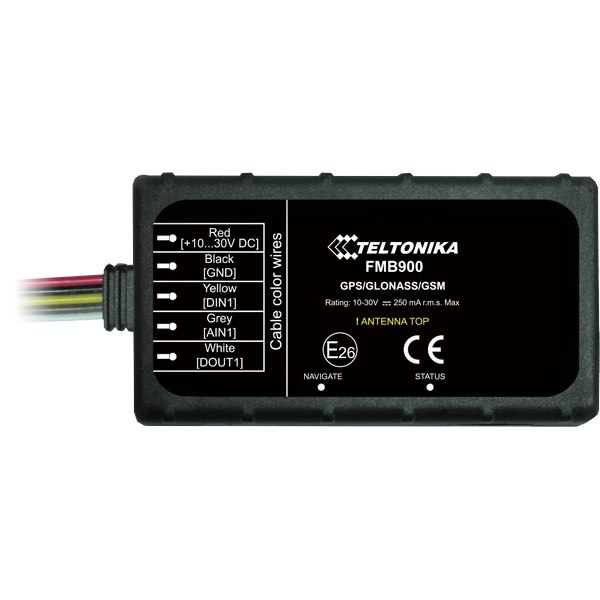

Teltonika FMB900

Teltonika FMB900

Supported

Teltonika FMB900 is light real-time tracking terminal with GNSS, GSM and Bluetooth connectivity which is able to collect device coordinates and other useful data and transfer them via GSM network to server.

Server connection details

Server address
tracker.itrack.live
Server IP
52.51.181.145
Port
47776
Teltonika FMB920

Teltonika FMB920

Supported

FMB920 is light real-time tracking terminal with GNSS, GSM and Bluetooth connectivity which is able to collect device coordinates and other useful data and transfer them via GSM network to server. Bluetooth peripherals can greatly expand device functionality wirelessly. This device is perfectly suitable for applications where location acquirement of remote objects is needed: security, fleet management, car rental companies, taxi companies, public transport, logistics companies, personal cars and so on.

Server connection details

Server address
tracker.itrack.live
Server IP
52.51.181.145
Port
47776
Specifications

FEATURES

  • Bluetooth transceiver fully compliant with Bluetooth specification V3.0 for external peripherals
  • Up to 32 GB micro SD memory card for up to 275 million records
  • IP54 certified case
  • Fully controllable digital output via SMS and configurator
  • Ultra small and easy to mount in limited access areas case
  • Fast first GPS fix
  • Real Time tracking
  • Sending acquired data via GPRS (TCP/IP and UDP/IP protocols)
  • Smart algorithm of GPRS connections for GPRS traffic saving
  • Operating in roaming networks by preferred GSM providers list
  • Events from I/O elements detection and sending via GPRS or SMS
  • Auto Geofencing and Towing Detection for car theft prevention
  • Deep Sleep mode (less than 2 mA power consumption)
  • Firmware and configuration update via GPRS
  • Smart data acquisition mode
  • High Quality track even in high density populated urban areas or canyon
  • Color Ribbon undetachable cable
  • Easy to mount
  • High Gain internal GNSS and GSM antennas
  • 2 status LED
  • Configuration via Bluetooth
  • Crash detection
  • Towing detection using accelerometer
  • Smart data acquisition based on:
    • Time
    • Distance
    • Angle
    • Ignition or any other I/O events

  • Configurable using Secured SMS commands and configurator on PC

SPECIFICATIONS

  • GSM
    • Quad-band 900/1800 MHz; 850/1900 MHz
    • GPRS Multi-Slot Class 12(up to 240 kbps)
    • GPRS Mobile Station Class B
    • SMS (text/data)

  • GNSS
    • Tracking: 33/ 99 acquisition channels
    • -165 dBM sensitivity
    • Hot start <1s
    • Warm Start < 25s
    • Cold start < 35s
    • NMEA-183 protocol
    • GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS
    • Accuracy < 3m

  • INTERFACE
    • 1 Digital Input
    • 1 Analog Input
    • 1 Digital Open-collector Output (connecting external relays, LED, buzzers etc.)
    • Bluetooth specification V3.0 (2400 MHz - 2483.5 MHz)
    • Built in accelerometer
    • Power supply (+10...+30) V DC with overvoltage protection
    • Internal High Gain GNSS antenna
    • Internal High Gain GSM antenna
    • Dimensions: L(79mm)xW(43mm)xH(12mm)
    • 2 Status LEDs

  • Bluetooth
    • Bluetooth specification V3.0
    • Bluetooth transceiver fully compliant with Bluetooth specification V3.0 for external peripherals:
      • Voice calls over Bluetooth
      • Configuration via Bluetooth
      • Bluetooth sensors

Teltonika GH3000

Teltonika GH3000

Supported

Teltonika GH3000 is a handheld personal, pet and asset GPS tracker with wide range of options. It can be used by travelers or lone workers as navigation and safety device.

Server connection details

Server address
tracker.itrack.live
Server IP
52.51.181.145
Port
47776

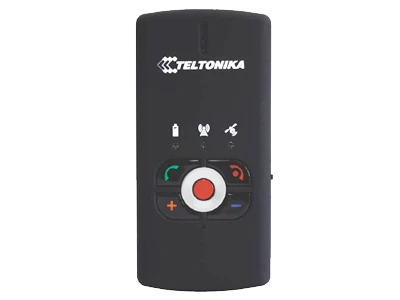

Teltonika GH4000

Teltonika GH4000

Supported

Teltonika GH4000 is life tracking device with built-in with GPS/GLONASS and GSM connectivity, which is able to collect device coordinates and other useful data and transfer them via GSM network to server.

Server connection details

Server address
tracker.itrack.live
Server IP
52.51.181.145
Port
47776

Ready for the most innovative GPS tracking software?

Explore our products using demo access, or talk to our live sales team. A full-featured 30-day trial is available within minutes.

Live demo  Talk to sales

Contact Us

If you're considering GPS tracking platform, or just want more information, we're happy to answer all your questions and get you set up. Simply send us an email or for immediate assistance, call us.

Tel
+961.1.694036/7
Tel / Fax
+961.1.692149
Mob
+961.76.454343
Email
sales@technovisionlb.com
Office
Sed El-Bauchrieh, Beirut, Lebanon
